Use e.g. for counting erythrocytes, leukocytes and thrombocytes.
Glass counting chamber with two counting grids, incl. 2 cover slips.

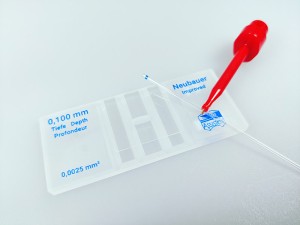

Neubauer 'improved'
|
CE conformity |
|
for in vitro diagnostic use |
Manufacturer |
|
|
Hecht |
Counting grid = 9 mm² total area. Chamber depth 0.1 mm. Divided into 9 square groups, each with an area of 1 mm². In the centre square 5x5 = 25 squares, each with 16 small squares of 0.05 mm side length (0.05 mm²).
Two versions available:
- CC.NEUI (standard version)
Double counting grid, dark-line. The grid division can be seen under the microscope as a grid of dark lines. - CC.NEUIB
Double counting grid, bright-line, metallised surface. The counting chambers have a monomolecular vapour deposition of rhodium. The bright lines create a sharp contrast against the darker, metallised background. Possible disadvantage: more light energy required, greater heating, faster drying of the sample.
Product Images
Image may differ from the product design.
Product Versions
| REF (Ord.-No.) | Content | Price | Specification | ||||
|---|---|---|---|---|---|---|---|
| CC.NEUI | 1 | Piece | 44,50 € |
Glass
dark-line |
|||
| CC.NEUIB | 1 | Piece | 74,60 € |
Glass
bright-line |
|||
Product Information
Cover slips (for Hemacytometer)
Cover slips (replacement) for use with counting chambers and haemacytometers. High precision design with optical flat surface grinding on both sides, ground and polished edges. Ready to use, individually packed. Size: 20 x 26 mm, thickness: 0.4 mm.
Neubauer 'improved' - disposable
Use e.g. for counting erythrocytes, leukocytes and thrombocytes.
Glass counting chamber with two counting grids for single use.
